In-Line Bourg Perfect Binders with Canon/Océ In-Line / Near-Line / Dual-Mode

In-Line Bourg Perfect Binders with Canon/Océ

We have a modular approach: start with a binder and add as many modules and options as you need to create the perfect solution tailored to your needs. Automatic job set-up and full integrity check, production of 4 jobs at the same time, non-stop production and In-Line book trimming are example of upgrades you can go for.

We offer end-to-end to solution/print to finish with Canon: just load white paper and collect the finished books ready for distribution

Our perfect binding solutions are compatible with the following Canon production printers/presses:

  • Canon imagePRESS C8000VP
  • Canon imagePRESS C10000VP
  • Canon/Océ VarioPrint i200
  • Canon/Océ VarioPrint i300
  • Océ Varioprint 6000 series

Our In-Line/Dual-Mode perfect binding solutions fit the needs of each business profile & production workflow. The only common criterion : a need to produce on-demand books. Our tailored solutions will help for example :

  • Printers and publishing warehouses (POD) to respond quickly to a demand of short-run book production and avoid storage of books in houses and in shops.
  • Online bookshops producing a large quantity of “book runs of one” such as photo books and the production of single book orders.
  • Financial and governmental institutions to have full production discretion.

What is particularly amazing about these In-Line/Dual-Mode solutions with Canon/Océ?

  1. It's the best way to optimize your asset utilization for diverse and short-run job streams production. Skilled operators can be reasigned to perform higher-value tasks.
  2. You offers your clients short turnarounds for added value.
  3. Add accessories whenever you want to gain in flexbility and automation. Our solutions adapt to your need today - and tomorrow!

Fast In-Line and fully automatic high-quality book production with Canon/Océ

Our In-Line binders produces perfect-bound books at a peak rate of 350 books per hour (up to 650 cycles/hour). Final dimensions of books produced range from 195 x 139 mm (7.67 x 5.47 in) up to a maximum 370 x 320 mm (14.56 x 12.59 in), and in thickness from 1 to 60 mm (0.04 to 2.36 in).

All Bourg perfect binding solutions automatically adapts to the thickness of each job to process each book most productively, sets jogging, power milling and notching, gluing, scoring and suction cover-feeding without manual intervention.

Create the perfect binding workflow that corresponds to your needs of today and tomorrow

Start with a BB3002 and add:

  • One Bourg Sheet Feeder (BSF) to enable Dual-Mode finishing. You get the flexibility to combine In-Line and Off-Line modes and to use one print finishing solution for several printers.
  • Two Bourg Sheet Feeder (BSF Tandem) to increase efficiency. Your production line works continuously without interruptions due to paper shortage. Once the first feeder runs out of paper, the system automatically switches to the second one. Output is uninterrupted and productivity is maintained at 100%.
  • The latest barcode reader technology. It can be equipped on the BB3002 perfect binding family and the CMT knife trimming family. It offers cover to content matching to ensure your production‘s job integrity. No manual job set-up is required since the system is integrated in the machine.
  • One or two Bourg Preparation Module (BPM) to produce up to four jobs at the same time, reduces click charges & reduces waste production.
  • A Bourg WalkOver bridge (BWO). It serves not only as a time-saving shortcut for the operator but also as a speed adjuster. It matches paper speed between your printer and C.P. Bourg finishing modules without slowing down the printing speed & performances.

Your needs changes in the future ? No problem! Our local partner will help you to adapt your In-Line perfect binder to your new requirements.

Contact your local partner or configure your solution now to find out which of our C.P. Bourg’s unique perfect binding workflows corresponds to your needs!

Available in EVA/hot melt and PUR glue

Depending on the job you need to perform, C.P. Bourg enables you to have the machine that responds to your needs. The PUR adhesive system is the most durable and flexible book binding glue available. It is ideal to produce softcover books, and on-demand full-color print materials such as photo books. The EVA/hot melt adhesive is faster and cheaper than PUR but is less durable and less flexible. This is why the EVA gluing system is ideal to produce on-demand handouts, medical prescription books (cover with innerflaps and tear-off sheets) and black/white books for a small price. If you decide to purchase a perfect binder from our BB3x02 product family in PUR-C, please note that this machine can be used with EVA/hot melt when needed.

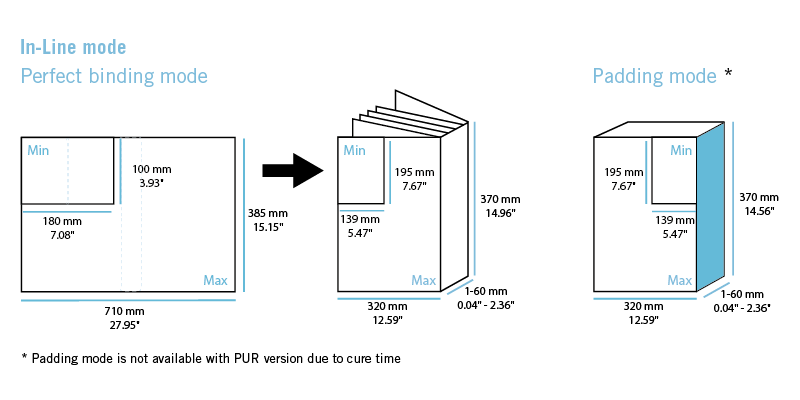

Media / Sheet sizes Media sizes
STANDARD FEATURES OF the in-line bourg perfect binding solutions
Features Advantages Benefits
Fully Autonomous IN-LINE Binder
  • Work In-Line with your press/printer
  • No human intervention
  • The binder is fed sheet by sheet, once the book block is completed, it can be glued immediately
  • Reduction of your businesses print costs
  • Offers to your clients short turnarounds for added value
UpgradeD from BB3002
  • The BB3202 combines the BB3002 and the Bourg Book Compiler (BBC)
  • Benefit from all the unique features of the BB3202 leading to increased productivity
Wide Range of Book Thicknesses
  • Binds from 1 to 60 mm (0.04 to 2.36 in)
  • No pre-measurements required
  • Book thickness is automatically recorded during the loading process
Graphical User Interface (GUI)
  • User-friendly industrial grade color touch screen
  • Single GUI for entire finishing line can be connected wirelessly to any tablet, smartphone or computer
  • Control your entire finishing remotely
  • Remote diagnostics, statistics and much more
MISSING COVER DETECTION
  • Check that the cover has been taken
  • Avoid binding without cover
  • Avoid reprints and waste
ADJUSTABLE JOGGER VIBRATION
  • Vibration of the jogger plate re-aligns the block of paper to be bound
  • Ensures high quality perfect bound books
Superior milling and notching/DEFIBERING
  • Milling wheel with notching tool for EVA/defibering tool for PUR applications (milling depth: from 0 to 3 mm - from 0 to 0.11 in)
  • Ensures deep glue penetration for maximum cover adhesion
paper dust collector
  • Gathers paper dust generated by milling/notching operation
  • No need for external dust removal
Available in EVA and PUR glue
  • EVA: 3 cylinder glue tank
  • PUR: Nordson applicator
  • Professional quality glue application
DETECTION OF MIN/MAX GLUE LEVELS
  • Indicates when the glue tank needs to be refilled
  • Manage glue level more easily
  • Gain in productivity
Incorporated Side Gluing
  • Adjustable side gluing (accuracy at 0,1 mm/0.004 in)
  • Superior EVA/PUR-C side gluing for premier book binding
Knife creasing
  • Up to 13 positive/negative cover creases
  • Highest quality creasing
  • Able to create winged books
START-UP TIMER
  • Enables to pre-program and schedule production
  • Gain time: no need to wait for the glue to be ready to operate
  • Fully automatic: no need to switch on the machine
Safety barrier
  • Light curtains guarantee operator safety while loading
  • Jobs are automatically processed when removing hands from loading area
  • Increases productivity and ease of operation while guaranteeing operator safety
OPTIONS
FEATURES ADVANTAGES BENEFITS
double cover detection
  • Check that cover feeder takes one cover at a time
  • No manual check that only one cover has been taken
  • Avoid reprints and waste
Automatic barcode scanning
  • Each book block and cover will be scanned in order to guarantee book integrity
  • No setup required
  • Each job is checked in order to avoid reprints, also records each job for job tracking
  • No manual job setup
Bourg book reception module (BBR) (to use only if no CMT knife trimmer is attached)
  • Stacks books vertically on the spine to allow the glue to dry in a perfect position
  • Large storage capacity
  • No production loss as it can be unloaded during job production
  • Guarantees book spine squareness

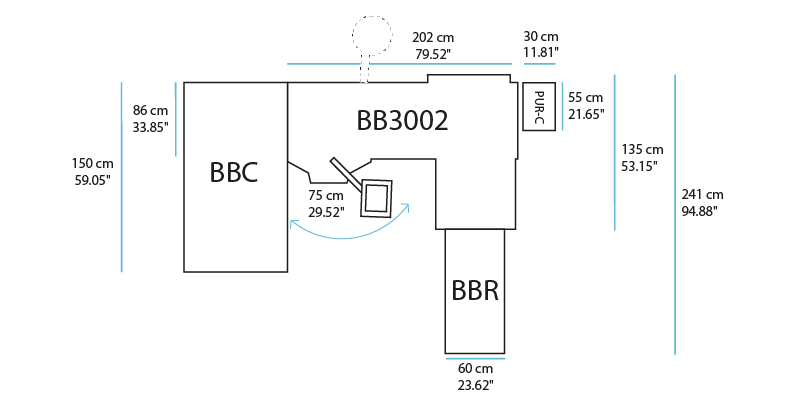

Dimensions Dimensions
Maximum speed in EVA mode 650 cycles/hour
350 books/hour
Maximum speed in PUR-C mode 650 cycles/hour
285 books/hour
Media
Cover in off-line/near-line/in-line modes
Minimum cover size 100 x180 mm (3.93 x 7.08 in)
Maximum cover size 385 x 750 mm (15.15 x 29.52 in)
Cover weight 80 to 300 gsm
Content in OFF-line mode (1)
Minimum paper size of books with cover (perfect binding mode) 100 x 90 mm
(3.93 x 3.54 in)
Maximum paper size of books with cover (perfect binding mode) 385 x 320 mm
(15.15 x 12.59 in)
Minimum paper size of books without cover (padding mode) 60 x 90 mm
(2.36 x 3.54 in)
Maximum paper size of books without cover (padding mode) 385 x 320 mm
(15.15 x 12.59 in)
Book thickness (perfect binding and padding modes) 1 to 60 mm
(0.04 to 2.36 in)
Milling depth 0 to 3 mm (0 to 0.11 in)
Paper weight 60 to 200 gsm
Content in In-Line/NEAR-line modeS (1) (2)
Minimum paper size of books with/without cover (perfect binding and padding modes) 195 x 139 mm
(7.67 x 5.47 in)
Maximum paper size of books with/without cover (perfect binding and padding modes) 370 x 320 mm
(14.56 x 12.59 in)
Book thickness (perfect binding and padding modes) 1 to 60 mm
(0.04 to 2.36 in)
Milling depth 0 to 3 mm (0 to 0.11 in)
Paper weight 60 to 200 gsm
(1) Padding mode is not available with PUR version due to cure time
(2) These figures may be impacted by printer media limitations
Physical
Dimensions of BB3002 (L x W x H) 202 x 135 x 150 cm
(79.52 x 53.15 x 59.05 in)
Dimensions of BBR (L x W x H) 106 x 60 x 50 cm
(41.73 x 23.62 x 19.68 in)
Dimensions of BBC (L x W x H) 150 x 85 x 145 cm
(59.05 x 33.46 x 57.08 in)
Weight of BB3002 650 kg (1,430 lbs)
Weight of BBR 80 kg (176 lbs)
Weight of BBC 300 kg (661 lbs)
Glue temperature (EVA) 130°C to 180°C (256°F to 356°F)
Cover station capacity (cover pile height) 80 mm (3.15 in)
BBR capacity 700 mm (27.56 in)

Electrical
Power supply
BB3002 208/220V ±10%, 60Hz, 3 phase delta, 12A

220/230V or 240V ±10%, 50Hz, 3 phase delta, 12A

380/400 or 415V ±10%, 50Hz, 3 phase star, no neutral needed, 12A
BBC 120V ±10%, 60Hz, 5A
230V ±10%, 50Hz, 2A
OPERATIONAL MODE
Power consumption 4,000 W
Radiant heat 13,648 BTU/hour
Sound level 76 dB
STANDBY MODE
Power consumption 1,150 W
Radiant heat 5,120 BTU/hour
Air supply for pur-c system
Compressed air requirements 87 to 116 PSI / 6 to 8 BAR
Air consumption 50 l/min; the melter needs a flow rate a 30 Std L/min
Minimum air quality rating requirements ISO 8573.1 :2010 Class 1.7.2 (maximum particule size: 40μm ; maximum concentration: 10mg/m3 ; maximum Dew point: +7°C)
