Bourg Square Edge (BSE) In-Line / Off-Line / Near-Line / Dual-Mode

Bourg Square Edge (BSE)

The Square Edge accessory takes traditional stitch-fold-trim booklets and transforms them into square edge booklets. Similar in appearance to perfect bound books, these booklets lay flat, stack easily and allow printing on the spine.

The BSE is connectable with C.P. Bourg high end In-Line, Off-Line, and Near-Line booklet making equipment.

Eight reasons to upgrade your booklet making equipment with a Bourg Square Edge

  1. Traditional stitch-fold booklets are transformed into high-quality square edge booklets
  2. Accepts maximum booklet thickness from 1 mm to 6,5 mm (0.04 to 0.26 in - this corresponds to approximatively 30 sheets of 80 gsm bond paper folded into a 120 pages booklet) and can take booklet formats of up to 350 x 250 mm (13.78 x 9.84 in)
  3. Maximum speed of 1,750 booklets/hour (single pass)
  4. There is no risk of loose pages - you can even print on the spine
  5. Booklets can be opened flat without damaging the spine
  6. Overall bulk is reduced by at least one third
  7. Flat booklets are easy to handle, stack and pack
  8. Hand-feed (Off-Line) or operate In-Line with C.P. Bourg booklet making equipment, the choice is yours
Media / Sheet sizes Media sizes
Dimensions Dimensions
Maximum speed single pass 1,750 booklets/hour
Maximum speed double pass 1,150 booklets/hour

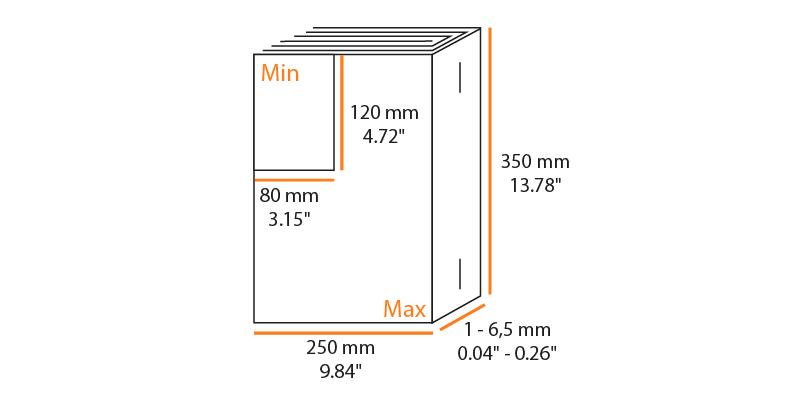

Min booklet size 80 x 120 mm (3.15 x 4.72 in)
Maximum booklet size 250 x 350 mm (9.84 x 13.78 in)
Booklet thickness 1 to 6,5 mm (0.04 to 0.26 in)

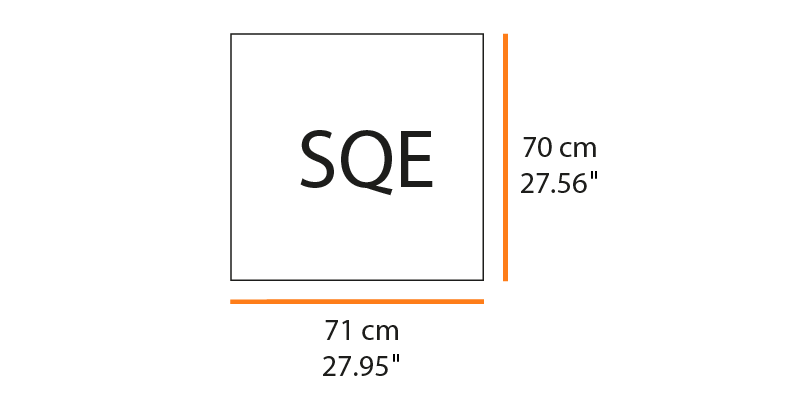

Dimensions (L x W x H) 71 x 70 x 106 cm
(27.95 x 27.56 x 41.73 in)
Weight 98 kg (216 lbs)
Electrical / acoustic
Power supply 120V ±10%, 60Hz, 5A
230V ±10%, 50Hz, 3A
Operational mode
Power consumption 700 W
Radiant heat 2,400 BTU/hour
Sound level 72 dB
Spare Parts Kits
BSE Spare Parts Kit

BSE Spare Parts Kit

BSE Spare Parts Kit
