The CMT-130TC is a hydraulic single-knife book trimmer with robotized book rotation that provides the same functionality as a three-knife trimmer but at lower cost and with consistent product quality.

This fully automated three-side book trimmer finishing solution is designed for on-demand and short-run digitally printed perfect-bound books. It is capable of fulfilling a combination of both Off-Line and In-Line feeding systems with the Bourg Binder 3x02 family.

The CMT-130TC has been upgraded with five other new features: (1) a 26.7 cm (10.5 in) color touchscreen display; (2) an integrated barcode reading system; (3) a precise knife depth control; (4) an automatic size detection of untrimmed books ; (5) and a live graphical display of each book.

All new benefits in details

  • Integrated In-Line and Off-Line feeding systems with the Bourg Binder BB3x02 family. With the proper configuration of feeding components, the CMT-130TC is capable of automatically switching, as needed, between feeding books directly from an In-Line Bourg B3x02 perfect binder OR from a manually loaded Off-Line book pile feeder system.  If one system is waiting for its next book, the other system can feed the trimmer to maximize production throughput.
  • Intuitive 10.5” (26,7 cm) color touchscreen display provides a clear & easy-to-read image of the trimming system. Automatic starting book size detection simplifies the required job parameters making job entry quick and easy.
  • Integrated barcode reading system’s 1D/2D enables true fully-automated book-of-one production by automating job set-up.
  • Precision knife depth control assures consistent and complete control of knife stroke depth and reduces wear to cut sticks as well as the need for continued knife adjustments.
  • Automatic size detection of pre-trimmed books means only three dimensions are required for job programming.
  • Live graphical display of each book as it travels through the system.

Extra reasons to purchase a CMT-130TC Book Trimmer

  1. Single-knife trimming process with robotized book repositioning for three-sides cut
  2. Maximum speed in multiple book mode of up to 500 books/hour
  3. The ability to stack up to three books per cutting cycle
  4. Hydraulic clamping and cutting action provides strength to cut through books up to 50,8 mm (2.00 in) thick
  5. Variable mode data entry with up to 99 jobs stored in memory (or unlimited with USB memory expension)
  6. Operational simplicity: smart self-diagnostic assistances and error-indication
  7. Sturdy steel and cast-iron design reduces number of repairs and allows for more consistent production
  8. No tools are required to perform manual adjustments or exchange book clamps
  9. CE, UL and cUL approved

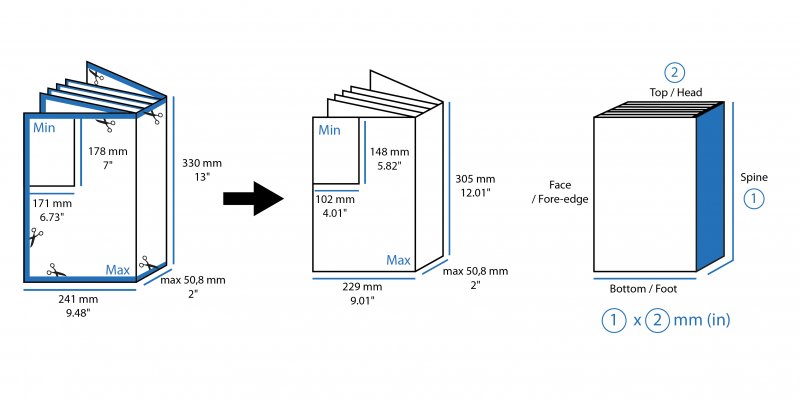

Media / Sheet sizes Media sizes
STANDARD FEATURES
Features Advantages Benefits
Sturdy steel and cast-iron design
  • Years of trouble-free operation
  • Reduced number of repairs
  • Allows for more consistent production
Hydraulic clamping and cutting
  • Cut up to 50,8 mm (2.00 in) thick books
  • Automatic detection of book block size means only three dimensions are required for job programming
  • Allows for more versatile production
  • Save time on cutting up to three books at a time
  • Automatic starting book size detection simplifies the required job parameters making job entry quick and easy
SINGLE-knife trimming process
  • Consistent product quality
  • Provide the consistency demanded by clients
Modularity
  • Customize the CMT-130TC with: high capacity feeder, vertical stacker, infeed conveyor and cooling elevator
  • Allows you to adapt to the changing print environment of both Off-Line and In-Line
Menu-driven controller
  • Allows for variable mode data entry with up to 99 jobs stored in memory or unlimited with included USB connection
  • Machine self-diagnostics and error indication
  • Increased job and operator flexibility with simple user-friendly interface
Rapid media size change
  • Tool-less automated media size change in around 10 seconds
  • Allow for continuous production by limiting down time
Automatic 1D/2D barcode scanning
  • Each book block and cover will be scanned in order to guarantee book integrity and set-up
  • Compatible with JDF
  • Each job is checked in order to avoid reprints, also records each job for job tracking
  • No manual job set-up needed
OPTIONS
FEATURES ADVANTAGES BENEFITS
  • Near-line book pile feeder
  • in-line feeder & cooling tower



  • Flexible feeding solution


  • Helps you to streamline your workflow
  • Exit conveyor
  • vertical stacker


  • This exit conveyor is the entry level unit. Books are stacked flat
  • The vertical stacker is the most professional stacking solution. Books are stacked vertically on the spine to allow the glue to dry in a perfect position
  • The exit conveyor is the best solution for price conscious customers
  • The vertical stacker will meet the efficiency & quality requirements of demanding customers

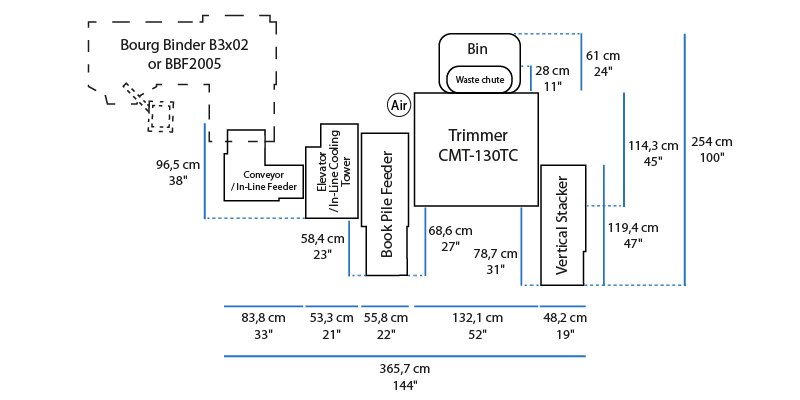

Dimensions Dimensions
Media
Maximum speed single book mode 200 books/hour
Maximum speed multiple book mode 500 books/hour
Maximum book thickness 50,8 mm (2.00 in)
Input
Minimum book size (In-Line mode) 178 x 171 mm (7 x 6.73 in)
Maximum book size 330 x 241 mm (13 x 9.48 in)
Output
Minimum book size 148 x 102 mm (5.82 x 4.01 in)
Maximum book size 305 x 229 mm (12.01 x 9.01 in)
Trim
Minimum (all sides) 2,5 mm (0.1 in)
Maximum Top 152 mm (5.98 in)
Maximum Bottom 89 mm (3.50 in)
Maximum Face 140 mm (5.51 in)
Physical
Dimensions of the base machine CMT-130TC (L x W x H) * 144,8 x 132,1 x 152,4 cm
(57 x 52 x 60 in)
Weight of the base machine CMT-130TC 680 kg (1,500 lbs)
Floor loading 3,73 kg/cm3 (53 PSI)
Waste bin capacity 164 liters (43 gallons)
Oil capacity 19 liters (5 gallons)
Knife re-grind 6,4 mm (0.25 in)
* Including the waste chute - can be removed for transportation.
Electrical
Power supply (standard motor) 208/230V ±10%, 60Hz, 3 phase, 20A
Power supply (optional motor) 380/415V ±10%, 50Hz, 3 phase, 12A
Air supply *
Compressed air requirements Must maintain a minimum 90 PSI,6 BAR (620 KPA) regulated, dry, non-lubricated compressed air source capable of supplying a minimum of 5 CFM (142 LPM)
Minimum air quality rating requirements ISO 8573.1 Class 2.4.2 (solids < 1 micron, pressure dew point < 38°F @100psig, and oil content < .08 ppm)
* Compressor not included/supplied
Others
Set-up time for book size change Around 10 seconds
Memory 99 book jobs or unlimited with USB memory expension
