For customers hesitating between Off-Line and In-Line finishing, C.P. Bourg offers the best of both worlds with the Dual-Mode Bourg Sheet Feeder (BSF). It allows multiple printers/presses to share one finishing device. Positioned In-Line between a printer/press and the finishing equipment, the BSF allows digital and offset print shops with different printers to easily shift and/or merge job production using the Dual-Mode (by shifting between In-Line and Off-Line/Near-Line modes), achieving productivity increases while maintaining integrity of collated output.
The BSF consists of two feeding stations which allows for a wide range of applications and flexibility. Thanks to the innovative air-table design, the lower feeding station has the capacity to accept a trolley fully stacked with collated sets of paper directly from a Canon/Océ, HP, Kodak, Konica Minolta, Xerox, etc. trolley/cart/pallet. No manual transfer of heavy stacks of collated paper sets from stacker carts to a sheet feeder is required. The cart/trolley is easily inserted in the machine. This results in increased productivity and reduces the risk of damaged sheets, stacking errors and personal injuries.
The top feeding station has the capacity to load up to 140 mm (5.51 in) of printed papers, laminated or coated materials. The paper is then fed using suction belt and air separation technology, enabling high feeding speeds of up to 18,000 sheets/hour even when media is waved or curled.
The BSF is the only one in its category capable of handling a wide range of media sizes from 203,2 x 120 mm (8 x 4.72 in) to 660,4 x 364 mm (26 x 14.33 in): the perfect complement to most digital printers/presses.
The BSF is the only one in its category that is able to feed up to 18,000 sheets/hour and accept wide paper formats from 203,2 x 120 mm (8 x 4.72 in) to 660,4 x 364 mm (26 x 14.33 in).
The BSF offers three possible applications for greater job flexibility:
By connecting two BSFs together, you get a Tandem BSF which automatically switches between units to allow non-stop finishing of jobs from In-Line and Off-Line printers/presses, and ensures peak finishing efficiency. Once the first feeder runs out of paper, the system automatically switches to the second one. Output is uninterrupted and productivity is maintained at 100%.
By automatically transferring print output from different manufacturers’ stacker carts into the sheet feeder and centering the stack, the BSF makes it easier for users in on-demand print environments to reap the productivity benefits offered by Off-Line/Near-Line volume finishing.
To provide you a great flexibility, we offer over 20 carts and trolleys compatible with various printers/presses and stackers (from HP Indigo, Kodak, Konica Monolta, Océ/Canon and Xerox) that can easily feed stacks of pre-collated documents (digital color, digital monochrome or from offset presses) in the Bourg Sheet Feeder (BSF).
The BSF can be connected to all of the following C.P. Bourg finishing modules, print engines and other machines:
Furthermore, the OMR mark recognition system and the ultrasonic double and miss control are standard features.
The barcode reader enables automatic job set-up by reading the barcode on the first sheet which contains specific job information (sheet size, number of pages, etc). Additional barcodes may be placed on every sheet to guarantee job integrity.
In brief, the BSF uniquely integrates with your current and future workflow and maximises your asset utilization.
STANDARD FEATURES | ||
Features | Advantages | Benefits |
Dual feeding stations (drawer and high pile) |
|
|
---|---|---|
CART Compatibility |
|
|
Compressed airflow positioning |
|
|
Suction belt & air sheet separation technology |
|
|
Optical Mark Recognition sensors (OMR) |
|
|
In-operation adjustments |
|
|
Ultrasonic Double Miss Control (DMC) |
|
|
Purge feature |
|
|
CART COMPATIBILITY KITS FOR XEROX & KONICA MINOLTA included | If the BSF has TAG 039 (valid from 01/2015), the following cart compatibility kits are included in the machine:
|
|
OPTIONS | ||
FEATURES | ADVANTAGES | BENEFITS |
Graphical User Interface (GUI) |
|
|
---|---|---|
Barcode reader capabilities 1D and 2D |
|
|
Interface Feeder Booklet maker (IFB) |
|
|
Media (in Off-Line mode) | |
Maximum Speed | 18,000 sheets/hour (A4 sheets, 90 gsm) |

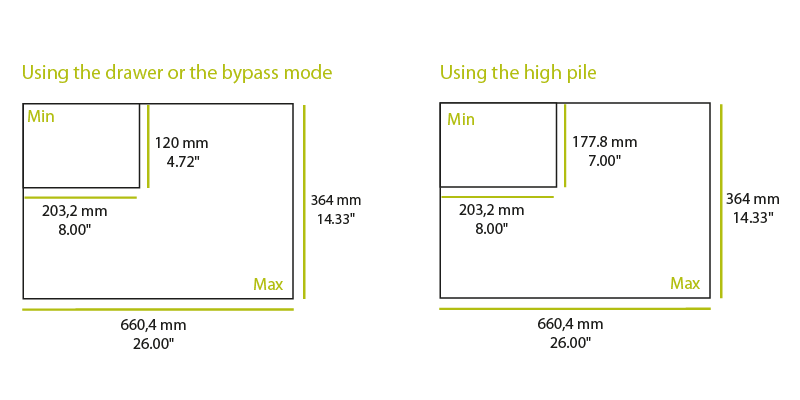

Minimum paper size (top feeding station/drawer and bypass mode) | 203,2 x 120 mm (8.00 x 4.72 in) |
Maximum paper size (top feeding station/drawer and bypass mode) | 660,4 x 364 mm (26.00 x 14.33 in) |
Minimum paper size (lower feeding station/high pile) | 203,2 x 177,8 mm (8.00 x 7.00 in) |
Maximum paper size (lower feeding station/high pile) | 660,4 x 364 mm (26.00 x 14.33 in) |
Paper weight | 60 to 350 gsm |
Physical | |
Dimensions (L x W x H) | 133 x 91,3 x 131,6 cm (52.36 x 35.94 x 51.81 in) |
Weight | 470 kg (1036.17 lbs) |
Number of stations | 2 stations (drawer, high pile) |
Drawer capacity (pile height) | 140 mm (5.51 in) |
High pile capacity (pile height) | 500 mm (19.68 in) |
Electrical / Acoustic | |
Power supply | 120V ±10%, 60Hz, 10.5A 230V ±10%, 50Hz, 6.5A |
Operational mode | |
---|---|
Power consumption | 760 W |
Radiant heat | 2,580 BTU/hour (1029 VA) |
Sound level | 75 dB |
Standby mode | |
Power consumption | 160 W |
Radiant heat | 546 BTU/hour (200 VA) |
