Bourg Preparation Module (BPM) In-Line / Off-Line / Near-Line / Dual-Mode

Bourg Preparation Module (BPM)

Available NOW in  2-UP and 4-UP



The Bourg Preparation Module (BPM) is a fully automated, modular and scalable sheet preparation unit that vastly simplifies the creation of perfect bound and stitched books and booklets. With a BPM connected to an In-Line Bourg binder or booklet maker, finished books and booklets of many different sizes can be produced with no operator intervention.

The BPM works In-Line with select digital printers and presses, as well as Off-Line, or in Dual-Mode connected to a Bourg Sheet Feeder (BSF).

The innovative BPM opens the way to significant economies of scale with its unique use of one paper size for any book format. Sheets are converted from large to small formats in one pass, enabling multiple book or booklet formats from media of a single size. Single-pass conversion also makes it possible to print on large sheets with multi-up imposition, which reduces click charges.

Fully automated sheet preparation reduces the manual workload, while maximizing productivity and optimizing quality. Ultimately, printers can deliver higher-quality, more cost-effective books and booklets in shorter turnaround times.

Streamlined workflow

The BPM eliminates or reduces many time-consuming processes, such as preparing media in multiple sizes, manually setting up machines, and trimming finished jobs. The fully automated process maximizes productivity, frees operators for other tasks, and minimizes the risk of human error.

The BPM is exceptionally versatile and easy-to-use :

  1. The operator simply loads a single-sized media into the printer/press and completes the process by unloading the finished books or booklets. Everything else is done automatically.
  2. Jobs are automatically converted from very large formats of up to 600 x 370 mm (23.6 x 14.6 in), to very small formats down to 139 x 120 mm (5.5 x 4.7 in) in a single pass.
  3. Multiple media types for covers, inside pages and inserts, can be processed together, offering a large flexibility in terms of finished product.
  4. The processed sheets can be fed directly from the BPM into a downstream C.P. Bourg BB3202 Perfect Binder or BM-e Booklet Maker.


High-quality results

With its innovative bleed trimming system the BPM cuts paper on all four edges, and trims symmetrically or asymmetrically from 4 to 100 mm (from 0.16 to 3.94 in) of coated or uncoated sheets. This way you can produce all creative formats.

Advanced servo-motor scoring cylinder technology creases sheets on the fly with very high position precision, while the highest quality knife creasing gives the best results without damaging the printed surface.

Modular, scalable solution

The BPM grows with your business. It uniquely integrates with your current and future workflow to maximize your asset utilization. You can start with one BPM to do 1-up and 2-up jobs and later, invest in a second BPM to do 4-up jobs.

Media / Sheet sizes Media sizes
STANDARD FEATURES
Features Advantages Benefits
MODULAR
  • The base unit incorporates a paper path containing sheet registration and rotation functions, additional onboard functionality may be added as required.
  • Some functions can be repeated for custom applications.
  • Configure your BPM as you need
SCALABLE
  • Start with one BPM for 1-up and 2-up jobs and later, invest in a second BPM to do 4-up jobs (expected commercial availability for the 4-up from Q4 2018).
  • Maximize your asset utilization
Bi-Directionnal
  • The paper-path can follow either a right to left process or a left to right process
  • Flexibility to change the In-Line press/printer
OPTIONS
FEATURES ADVANTAGES BENEFITS
4 additional functions
  • Each BPM may include up to three slots
  • Possible additional functions : bleed/trim, crease, cut, fold or bypass
  • Tailor your BPM to your need
GRAPHICAL USER INTERFACE (GUI)
  • User-friendly industrial grade color touch screen
  • Single GUI for entire finishing line can be connected wirelessly to any tablet, smartphone or computer
  • Control your entire finishing remotely
  • Remote diagnostics, statistics and much more
AUTOMATIC BARCODE SCANNING
  • Each book block and cover will be scanned in order to guarantee book integrity
  • No setup required
  • Each job is checked in order to avoid reprints, also records each job for job tracking
  • No manual job setup

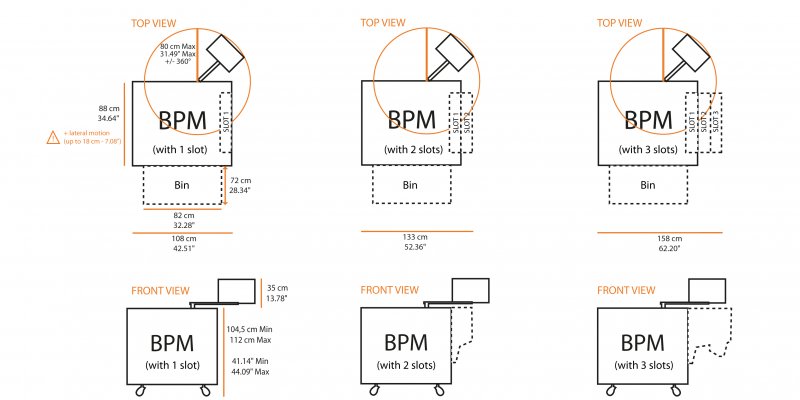

Dimensions Dimensions
Productivity A4 LEF : 300 spm
A3 LEF: 200 spm
Incoming velocity Adjustable 0,8 to 2 m/s (2.6 to 6.5 ft/s)
TOP & BOTTOM Bleed
Trim size 4 to 100 mm
Trim size tolerance 0,4 mm (0.01 in)
Paper weight 60 to 350 gsm
Crease/Micro-perforation
Crease position tolerance 0,4 mm (0.01 in)
Paper weight 60 to 350 gsm
CUT
Cut position tolerance 0,4 mm (0.01 in)
Paper weight 60 to 350 gsm
Fold
Fold position tolerance 0,6 mm (0.01 in)
Paper weight 60 to 170 gsm or 0,2 mm thickness
Media
Physical
Dimensions of BPM with 1 slot/unit (L x W x H) 108 x  88 x  104,5-112 cm
(42.51 x 34.64 x 41.14-44.09 in)
Dimensions of BPM with 2 slot/unit (L x W x H) 133 x 88 x  104,5-112 cm
(52.36 x 34.64 x 41.14-44.09 in)
Dimensions of BPM with 3 slot/unit (L x W x H) 158 x 88 x  104,5-112 cm
(62.20 x 34.64 x 41.14-44.09 in)
Weight of the BPM without any slot/unit 241,5 kg (532.41 lbs)
Weight of the bleeder unit 33 kg (72.75 lbs)
Weight of the cutter unit 33,5 kg (73.85 lbs)
Weight of the creaser unit 41 kg (90.38 lbs)
Weight of the folder unit 38 kg (83.77 lbs)
Weight of the Graphical User Interface (GUI) 3,5 kg (7.71 lbs)
BPM Slot

BPM Bypass

BPM Bypass

BPM Bleed/Trim

BPM Bleed/Trim

BPM Bleed/Trim

BPM Cut

BPM Cut

Bourg Production Module Cut

BPM Crease

BPM Crease

BPM Crease

BPM Micro-Perforate

BPM Micro-Perforate

BPM Options
BPM GUI

BPM GUI

Bourg Production Module Graphical User Interface. Please note that only one GUI is necessary in any booklet-making configuration.

Spare Parts Kits
Spare Parts Kit for BPM Main

Spare Parts Kit for BPM Main

Spare Parts Kit for BPM Main

Spare Parts Kit for BPM Fold

Spare Parts Kit for BPM Fold

Spare Parts Kit for BPM Fold

Spare Parts Kit for BPM Bleed/Trim

Spare Parts Kit for BPM Bleed/Trim

Spare Parts Kit for BPM Bleed/Trim

Spare Parts Kit for BPM Crease

Spare Parts Kit for BPM Crease

Spare Parts Kit for BPM Crease

Spare Parts Kit for BPM Cut

Spare Parts Kit for BPM Cut

Spare Parts Kit for BPM Cut

Additional Options
BPM connection cable

BPM connection cable

Cable to connect two BPM together

Bourg Box Communication Interface

Bourg Box Communication Interface

Bourg Box Communication Interface
